Overview

Quick Details

Finish:

Black, Plain

Style:

Wedge

Material:

Stainless Steel, 18-8 STAINLESS STEEL, Carbon steel,alloy steel,stainless steel, brass,52SiCrNi5,54SiCr6

Application:

Retail Industry

Place of Origin:

Shanghai, China

Model Number:

DIN125

Standard:

DIN,JIS,ANSI,GB,BSW,etc

Name:

stainless steel washer

Size:

m3-m56

Surface:

plain, zinc plated, hot-dip galvanized, mechanical plated ,etc

Quality Control:

100% Inspection during production

Samples:

Avaliable

Service:

Customized degin is avaliable

MOQ:

10000pcs

Package:

Small Packing+Carton Packing+Pallet

Port:

Shanghai Ningbo

Supply Ability

Supply Ability

300000000 Piece/Pieces per Month stainless steel washer

Packaging & Delivery

Packaging Details

Polybag and Standard carton. Or pack as the customer's requirement.

Port

Shanghai

Lead Time:

Quantity(pieces)	1 - 50000	50001 - 1000000	>1000000
Est. Time(days)	10	15	To be negotiated

Product Description

SS304 SS316 A2 A4 spring lock flat washer DIN125 DIN6916 DIN9021 DIN127

Material	1.StainlessSteel:SS201,SS303,SS304,SS316,SS410,SS420 2.Steel:C45(K1045), C46(K1046),C20 3.Carbon Steel: 1010,1035,1045 4.Aluminum or Aluminum Alloy:Al6061,Al6063,Al7075,etc 5.Brass:H59,H62,Copper,Bronze
Grade	SAE J429 Gr.2, 5,8; ASTM A307Gr.A,A193 B7,B8,B8M,A194 2H, Class 4.8, 5.8, 6.8, 8.8, 10.9, 12.9 and etc.
Finish	Plain, Zinc Plated(Clear/Blue/Yellow/Black), Black oxide, Nickel, Chrome, H.D.G and etc.
Thread	UNC,UNF,UEF,UN,UNS
Standard	ISO, DIN, ANSI, JIS, BS and Non-standard
Sample Service	Samples are all in free.
Certificate	ISO9001,CE, SGS, BV
Advantage	1. Competitive price; 2. OEM service available
Packing	Bulk in cartons (25kg Max.)+wood Pallet or according to customer special demand
Payment terms	FOB, CIF, CFR, L/C, or others.
Delivery method	by sea, by air or by express service
Lead Time	7-15 work days after order confirmed
Application	Structural Steel; Metal Buliding; Oil&Gas; Tower&Pole; Wind Energy; Mechanical Machine; Automobile: Home Decorating and etc.
Notes	Special specifications and marks can be made according to customers requirements;

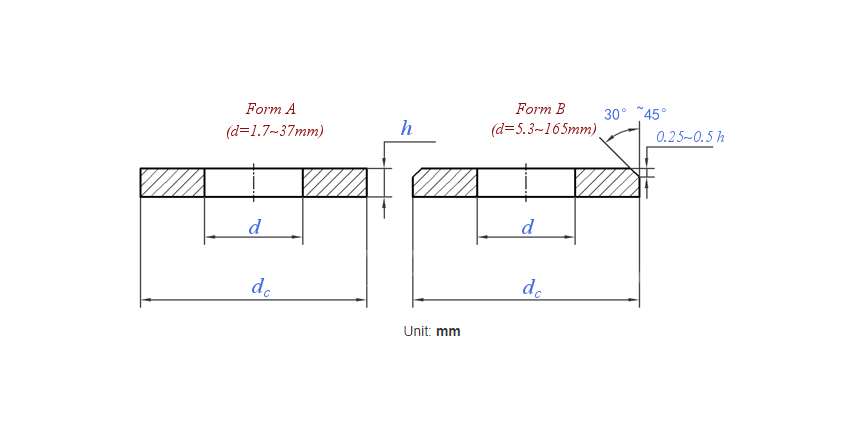

Size		Φ1.7	Φ1.8	Φ2.2	Φ2.5	Φ2.7	Φ2.8	Φ3.2	Φ3.7
M	For thread size	M1.6	M1.7	M2	M2.3	M2.5	M2.6	M3	M3.5
d	min=nominal size	1.7	1.8	2.2	2.5	2.7	2.8	3.2	3.7
	max	1.84	1.94	2.34	2.64	2.84	2.94	3.38	3.88
dc	max=nominal size	4	4.5	5	6	6	7	7	8
	min	3.7	4.2	4.7	5.7	5.7	6.64	6.64	7.64
h	Nominal Size	0.3	0.3	0.3	0.5	0.5	0.5	0.5	0.5
	max	0.35	0.35	0.35	0.55	0.55	0.55	0.55	0.55
	min	0.25	0.25	0.25	0.45	0.45	0.45	0.45	0.45
per 1000 units ≈ kg		0.024	0.031	0.037	0.092	0.088	0.127	0.119	0.155
Size		Φ4.3	Φ5.3	Φ6.4	Φ7.4	Φ8.4	Φ10.5	Φ13	Φ15
M	For thread size	M4	M5	M6	M7	M8	M10	M12	M14
d	min=nominal size	4.3	5.3	6.4	7.4	8.4	10.5	13	15
	max	4.48	5.48	6.62	7.62	8.62	10.77	13.27	15.27
dc	max=nominal size	9	10	12	14	16	20	24	28
	min	8.64	9.64	11.57	13.57	15.57	19.48	23.48	27.48
h	Nominal Size	0.8	1	1.6	1.6	1.6	2	2.5	2.5
	max	0.9	1.1	1.8	1.8	1.8	2.2	2.7	2.7
	min	0.7	0.9	1.4	1.4	1.4	1.8	2.3	2.3
per 1000 units ≈ kg		0.308	0.443	1.02	1.39	1.83	3.57	6.27	8.62
Size		Φ17	Φ19	Φ21	Φ23	Φ25	Φ27	Φ28	Φ29
M	For thread size	M16	M18	M20	M22	M24	M26	M27	M28
d	min=nominal size	17	19	21	23	25	27	28	29
	max	17.27	19.33	21.33	23.33	25.33	27.33	28.33	29.33
dc	max=nominal size	30	34	37	39	44	50	50	50
	min	29.48	33.38	36.38	38.38	43.38	49.38	49.38	49.38
h	Nominal Size	3	3	3	3	4	4	4	4
	max	3.3	3.3	3.3	3.3	4.3	4.3	4.3	4.3
	min	2.7	2.7	2.7	2.7	3.7	3.7	3.7	3.7
per 1000 units ≈ kg		11.3	14.7	17.2	18.3	32.3	43.7	42.3	40.9
Size		Φ31	Φ33	Φ34	Φ36	Φ37	Φ39	Φ40	Φ41
M	For thread size	M30	M32	M33	M35	M36	M38	M39	M40
d	min=nominal size	31	33	34	36	37	39	40	41
	max	31.39	33.62	34.62	36.62	37.62	39.62	40.62	41.62
dc	max=nominal size	56	60	60	66	66	72	72	72
	min	55.26	58.8	58.8	64.8	64.8	70.8	70.8	70.8
h	Nominal Size	4	5	5	5	5	6	6	6
	max	4.3	5.6	5.6	5.6	5.6	6.6	6.6	6.6
	min	3.7	4.4	4.4	4.4	4.4	5.4	5.4	5.4
per 1000 units ≈ kg		53.6	77.4	75.3	94.3	92.1	136	133	130
Size		Φ43	Φ46	Φ50	Φ52	Φ54	Φ57	Φ58	Φ60
M	For thread size	M42	M45	M48	M50	M52	M55	M56	M58
d	min=nominal size	43	46	50	52	54	57	58	60
	max	43.62	46.62	50.62	52.74	54.74	57.74	58.74	60.74
dc	max=nominal size	78	85	92	92	98	105	105	110
	min	76.8	83.6	90.6	90.6	96.6	103.6	103.6	108.6
h	Nominal Size	7	7	8	8	8	9	9	9
	max	8	8	9	9	9	10	10	10
	min	6	6	7	7	7	8	8	8
per 1000 units ≈ kg		183	220	294	284	330	431	425	472
Size		Φ62	Φ66	Φ70	Φ74	Φ78	Φ82	Φ87	Φ93
M	For thread size	M60	M64	M68	M72	M76	M80	M85	M90
d	min=nominal size	62	66	70	74	78	82	87	93
	max	62.74	66.74	70.74	74.74	78.74	82.87	87.87	93.87
dc	max=nominal size	110	115	120	125	135	140	145	160
	min	108.6	113.6	118.6	123.4	133.4	138.4	143.4	158.4
h	Nominal Size	9	9	10	10	10	12	12	12
	max	10	10	11	11	11	13.2	13.2	13.2
	min	8	8	9	9	9	10.8	10.8	10.8
per 1000 units ≈ kg		458	492	586	626	749	953	996	1250

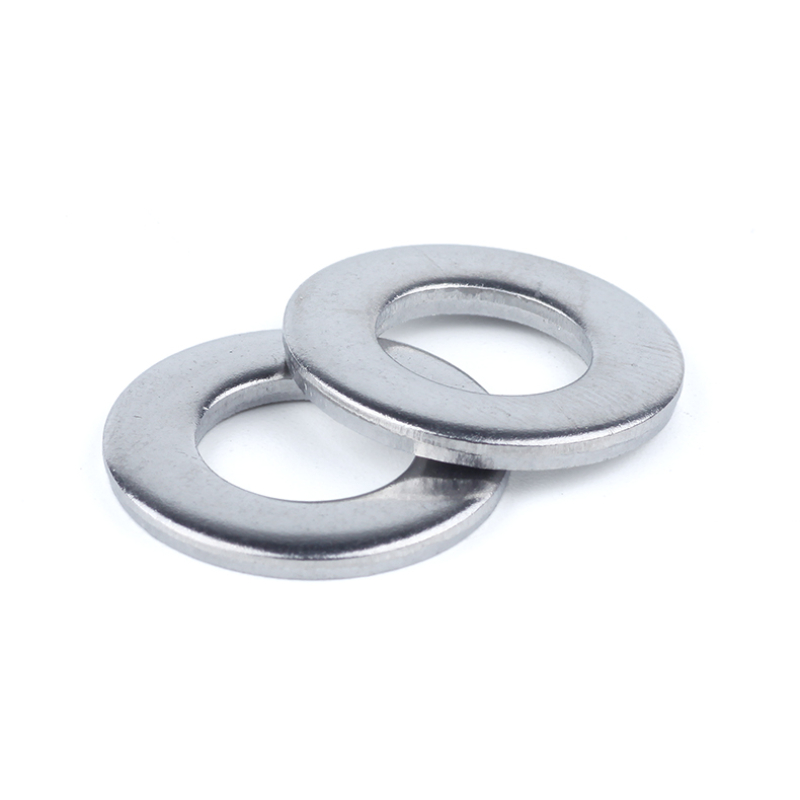

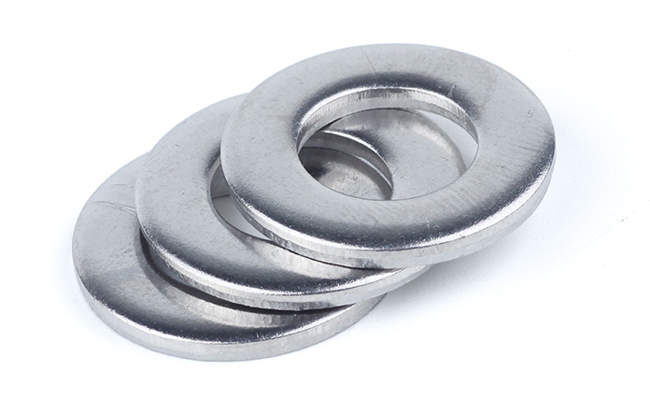

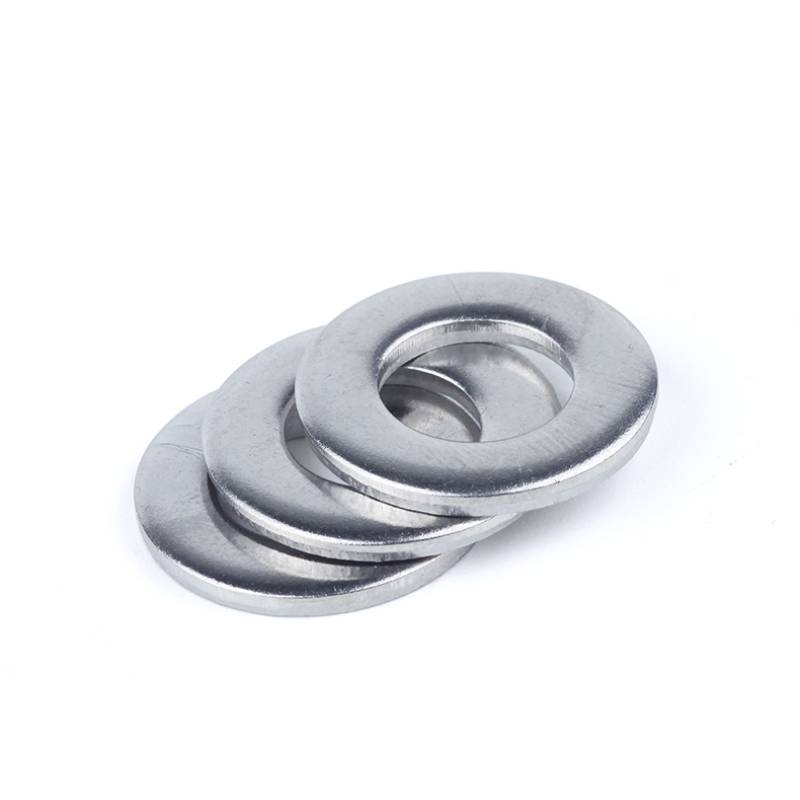

Product Picture

Popular Product

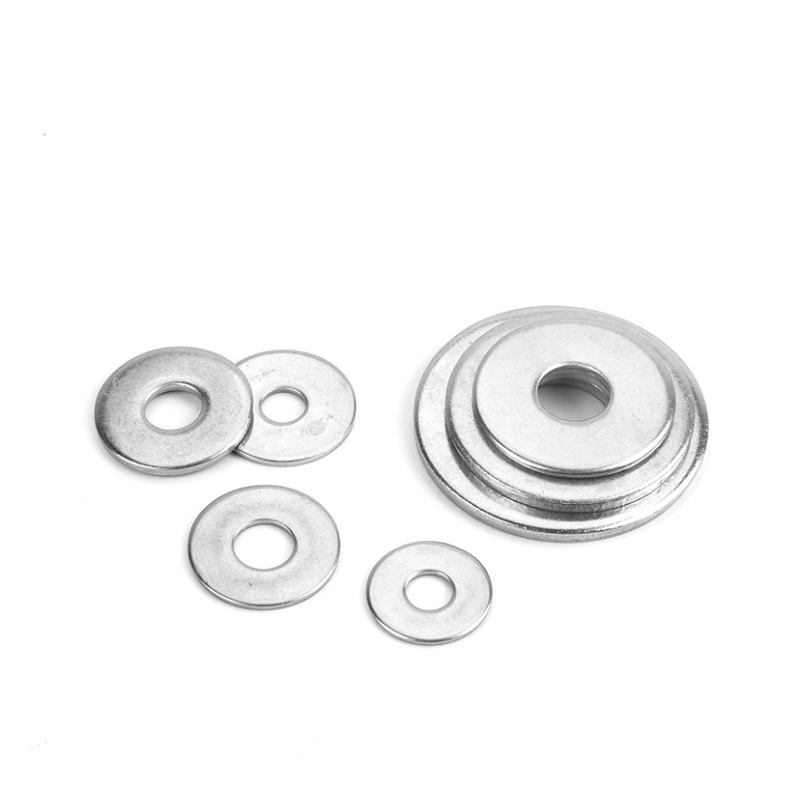

Plain washers

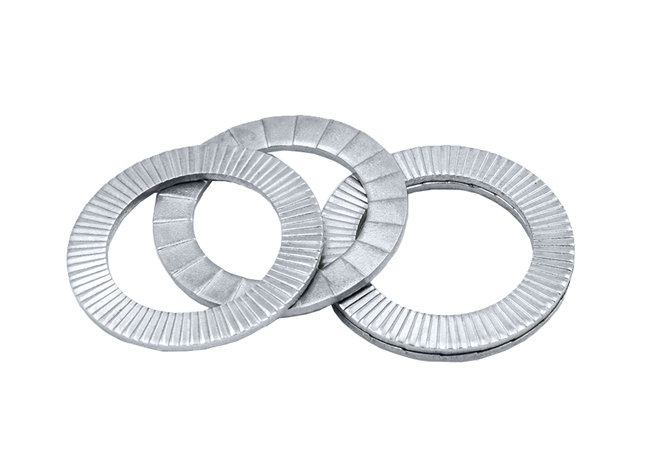

Double fold self-locking washer

Spring lock washers

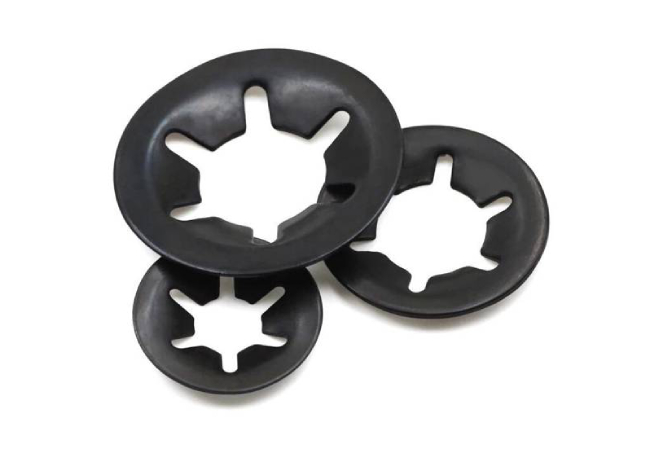

Internal tooth conical spring washers

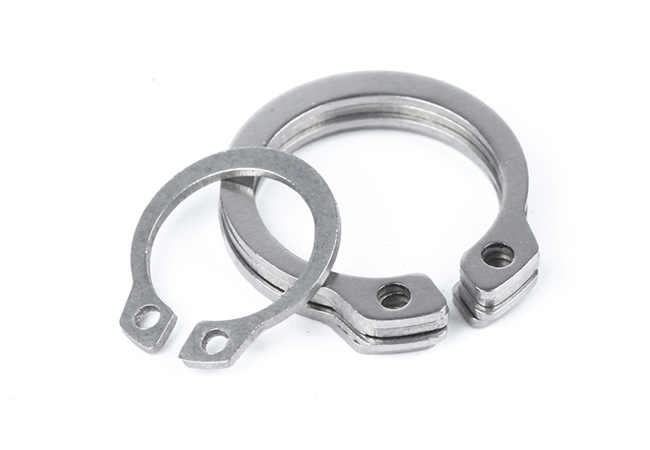

Circlips For Shaft

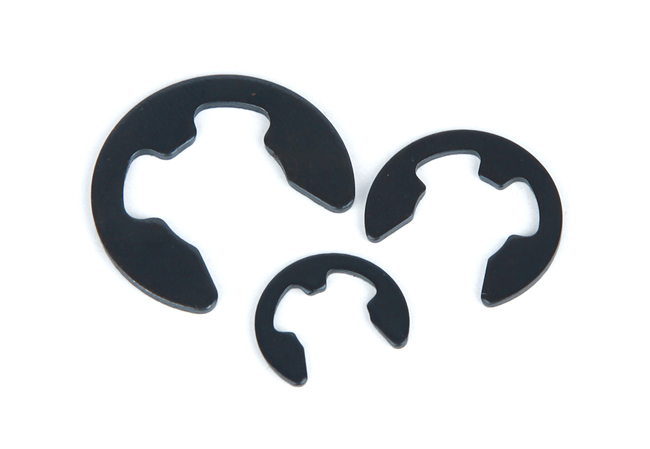

Retaining rings for shafts

1.How do you let me trust you.
We have own import & export right, and we are Gold mumber of alibaba and made in china, We get credit guarantee from Alibaba Group. you can make an order by alibaba to us directly.

2.How about your price.
High quality products with reasonable price. Please give me a inquire, I will quoted you a price for you refer at once.

3. How do you control your quality.
We request QC inspect every productions links for each bacth goods.And we can provide you MTC and mill certificate when the goods is finished.

4.Could you provide free samples?
For new customer, We can provide free samples for standard fastener, But the clients will pay the express charges. For old customer,We will send you free samples and pay express charges by ourself.

5.Do you accept small order?
Sure, we can accept any orders, we keep lots of stock for ALL STAINLESS STEEL FASTENER, CARBON STEEL NUT AND PART BOLT,Like hex weld nut, cage nut, wing nut, square weld nut,cap nut, hex nut,flange nut.Metric 8.8Grade,10.9Grade 12.9Grade Hex bolt and Hex Socket cap screw,Part ASME Hex cap screw.

6.How about your delivery time?
General speaking, if the goods is in stock, we can delivery them with 2-5days, If the quantity is 1-2container, we can give you with 18-25days,if the quantity is more than 2 container and you are very urgent, we can let factory priority produce your goods.

7.What is your packing ?
Our packing is 20-25kg for one carton,36 or 48pcs cartons for one pallet. One pallets is about 900-960kg, We also can make customer’s logo on the cartons. Or we customized cartons according to customers’ requestment

8.What is your payment term ?
We can accept T/T for general order .
