JIS B1180 M30 M18 M9 M5 Hexagon Head Bolt Continuous Thread Hexagon Head Bolts

Ask Lasest Price
Brand Name :	TOBO
Model Number :	Metal Threaded Rods
Certification :	ISO/PED/TUV/SGS/LR
Price :	negotiable
Payment Terms :	D/A, D/P, T/T, Western Union
Supply Ability :	20000PCS/DAY
Delivery Time :	7-15 workdays

Add to Cart

Product Details
Company Profile

JIS B1180 M30 M18 M9 M5 Hexagon Head Bolt Continuous Thread Hexagon Head Bolts

JIS B 1180 M30 M18 M9 M5 Hexagon Head Bolt Continuous Thread Hexagon Head Bolts

Hexagon bolts are fasteners composed of fingers and screws. Bolts are divided into iron bolts and stainless steel bolts according to the material, namely hexagon bolts (partial thread) -C and hexagon bolts (full thread) -C

Material Option

INCONEL
Inconel® 600, UNS N06600, DIN EN 2.4816
Inconel® 601, UNS N06601, DIN EN 2.4851
Inconel®625, UNS N06625, DIN EN 2.4856
Inconel®718, UNS N07718, DIN EN 2.4668

INCOLOY
Incoloy® 800H, UNS N08810, DIN EN 1.4958
Incoloy® 800HT, UNS N08811, DIN EN 1.4959
Incoloy® 825, UNS N08825, DIN EN 2.4858
Incoloy® 925, UNS N09925, DIN EN –

HASTELLOY
Hastelloy® C-276, UNS N10276, DIN EN 2.4819
Hastelloy® C-22, UNS N06022, DIN EN 2.4602
Hastelloy® B-2, UNS N10665, DIN EN 2.4617
Hastelloy® G-30, UNS N06030, DIN EN 2.4063

6% MOLY
AL-6XN®, UNS N08367, DIN EN –
25-6Mo, Alloy 926, UNS N08926 (N08925), DIN EN 1.4529
254 SMO, UNS S31254, DIN EN 1.4547

DUPLEX STAINLESS STEEL
Duplex 2205, UNS S32205, S31803, DIN EN 1.4462
Super Duplex 2507, UNS S32750, DIN EN 1.4410
Super Duplex S32760, UNSS32760, DIN EN 1.4501

MONEL
Monel® 400, UNS N04400, DIN EN 2.4360
Monel® K-500, UNS N05500, DIN EN 2.4375

NICKEL
Nickel 200, UNS N02200, DIN EN 2.4060, 2.4066
Nickel 201, UNS N02201, DIN EN 2.4061, 2.4068

ZIRCONIUM
Zr 702, UNS R60702, DIN EN –
Zr 705, UNS R60705, DIN EN –

TITANIUM
Titanium Gr-2, UNS R50400, DIN EN 3.7035
Titanium Gr-5, UNS R56400, DIN EN 3.7164, 3.7165
Titanium Gr-7, UNS R52400, DIN EN 3.7235
Titanium Gr-23, UNS R56401, DIN EN –

STAINLESS STEEL
A-286 Stainless Steel, UNS S66286, DIN EN 1.4980
310S Stainless Steel, UNS S31008, DIN EN 1.4845
317L Stainless Steel, UNS S31703, DIN EN 1.4438
321 Stainless Steel, UNS S32100, DIN EN 1.4541
904L Stainless Steel, UNS N08904, DIN EN 1.4539
Nitronic® 60, UNS S21800

Applications & Specifications

TOBO’s advanced and comprehensive range of capabilities include engineering, R&D, prototyping, custom manufacturing, precision processing and testing. All TOBO materials are sourced from the most reputable and exacting foundries in the world. We maintain a multi-million-dollar inventory of fasteners in our product warehouse, which enables TOBO to select, package and expedite your flat head screw order quickly.
We are globally recognized as the emerging leader of high-quality, nickel alloy fasteners .
TOBO fasteners meet applicable ASTM, ANSI, ASME, SAE, API, NAS, AN, MS, NACE, ISO, DIN, and KS

Industries

The markets we serve include Chemical Processing, Semiconductor, Power Generation, Aerospace, Oil & Gas, Pharmaceutical, Food & Beverage, Marine, Pulp & Paper, Petrochemical & Refining, Air Pollution Control, and Water Treatment.

Product Description

Length	13mm-200mm
Head	Round Head
Finish	Black/gray parkerizing
Thread	Fine thread,coarse thread
Packing	1000pcs/box,20box/carton,according to request

Products Show

JIS B1180 M30 M18 M9 M5 Hexagon Head Bolt Continuous Thread Hexagon Head Bolts

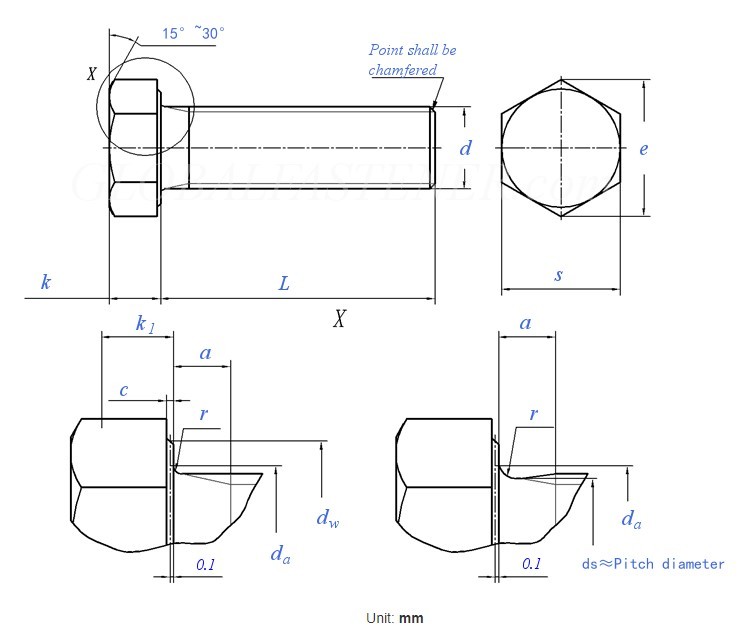

Screw Thread
d

M1.6

M2.5

M3.5

P	Pitch	coarse thread
		Fine thread,1
		Fine thread,2
a	coarse thread	max
		min
	Fine thread,1	max
		min
	Fine thread,2	max
		min
c	max
	min
d_a	max
d_w	min
e	min
k	Nominal Size
	max
	min
k₁	min
r	min
s	max=nominal size
	min

0.35	0.4	0.45	0.5	0.6	0.7	0.8	1	1.25
/	/	/	/	/	/	/	/	1
/	/	/	/	/	/	/	/	/
1.05	1.2	1.35	1.5	1.8	2.1	2.4	3	4
0.35	0.4	0.45	0.5	0.6	0.7	0.8	1	1.25
/	/	/	/	/	/	/	/	3
/	/	/	/	/	/	/	/	1
/	/	/	/	/	/	/	/	/
/	/	/	/	/	/	/	/	/
0.25	0.25	0.25	0.4	0.4	0.4	0.5	0.5	0.6
0.1	0.1	0.1	0.15	0.15	0.15	0.15	0.15	0.15
2	2.6	3.1	3.6	4.1	4.7	5.7	6.8	9.2
2.27	3.07	4.07	4.57	5.07	5.88	6.88	8.88	11.63
3.41	4.32	5.45	6.01	6.58	7.66	8.79	11.05	14.38
1.1	1.4	1.7	2	2.4	2.8	3.5	4	5.3
1.225	1.525	1.825	2.125	2.525	2.925	3.65	4.15	5.45
0.975	1.275	1.575	1.875	2.275	2.675	3.35	3.85	5.15
0.68	0.89	1.1	1.31	1.59	1.87	2.35	2.7	3.61
0.1	0.1	0.1	0.1	0.1	0.2	0.2	0.25	0.4
3.2	4	5	5.5	6	7	8	10	13
3.02	3.82	4.82	5.32	5.82	6.78	7.78	9.78	12.73

Screw Thread
d

M10

M12

M14

M16

M18

M20

M22

M24

P	Pitch	coarse thread
		Fine thread,1
		Fine thread,2
a	coarse thread	max
		min
	Fine thread,1	max
		min
	Fine thread,2	max
		min
c	max
	min
d_a	max
d_w	min
e	min
k	Nominal Size
	max
	min
k₁	min
r	min
s	max=nominal size
	min

1.5	1.75	2	2	2.5	2.5	2.5	3
1	1.5	/	1.5	/	1.5	/	2
1.25	1.25	1.5	/	1.5	2	1.5	/
4.5	5.3	6	6	7.5	7.5	7.5	9
1.5	1.75	2	2	2.5	2.5	2.5	3
3	4.5	/	4.5	/	4.5	/	6
1	1.5	/	1.5	/	1.5	/	2
4	4	4.5	/	4.5	6	4.5	/
1.25	1.25	1.5	/	1.5	2	1.5	/
0.6	0.6	0.6	0.8	0.8	0.8	0.8	0.8
0.15	0.15	0.15	0.2	0.2	0.2	0.2	0.2
11.2	13.7	15.7	17.7	20.2	22.4	24.4	26.4
14.63	16.63	19.64	22.49	25.34	28.19	31.71	33.61
17.77	20.03	23.36	26.75	30.14	33.53	37.72	39.98
6.4	7.5	8.8	10	11.5	12.5	14	15
6.58	7.68	8.98	10.18	11.715	12.715	14.215	15.215
6.22	7.32	8.62	9.82	11.285	12.285	13.785	14.785
4.35	5.12	6.03	6.87	7.9	8.6	9.65	10.35
0.4	0.6	0.6	0.6	0.6	0.8	0.8	0.8
16	18	21	24	27	30	34	36
15.73	17.73	20.67	23.67	26.67	29.67	33.38	35.38

FAQ

Q: Are you trading company or manufacturer ?

A: We are factory.

Q: How hong is your delivery time?
A: Generally it is 5-10 days if the goods are in stock. or it is 15-20 days if the goods are not in stock, it is according to quantity.

Q: Do you provide samples ? is it free or extra ?

A: Yes, we could offer the sample for free charge but do not pay the cost of freight.

Q: What is your terms of payment ?

A: Payment<=10000USD, 100% in advance. Payment>=10000USD, 50% T/T in advance ,balance before shippment.

Packing Details
 PLASTIC BAG+CARTON+WOOD FIX PALLET  EACH BAG AROUND 3-4KG AND 25KG PER CARTON AND LESS THAN 900KG PER PALLET

Package details:

1) Sample order, 20/25kg per carton with our logo or neutral package;

2) For Large orders, we can custom packaging;

3) Normal Packing: 1000/500/250pcs per small box. then into cartons and pallet;

4) According to customers' requirements.
